STAINLESS STEEL MESH

Stainless steel wire mesh is made of stainless steel wire woven by warp and weft.With its excellent resistance against acid, alkali, heat and corrosion, stainless steel wire finds extensive uses in processing of oils, chemicals, food, pharmaceuticals, as sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making and others.

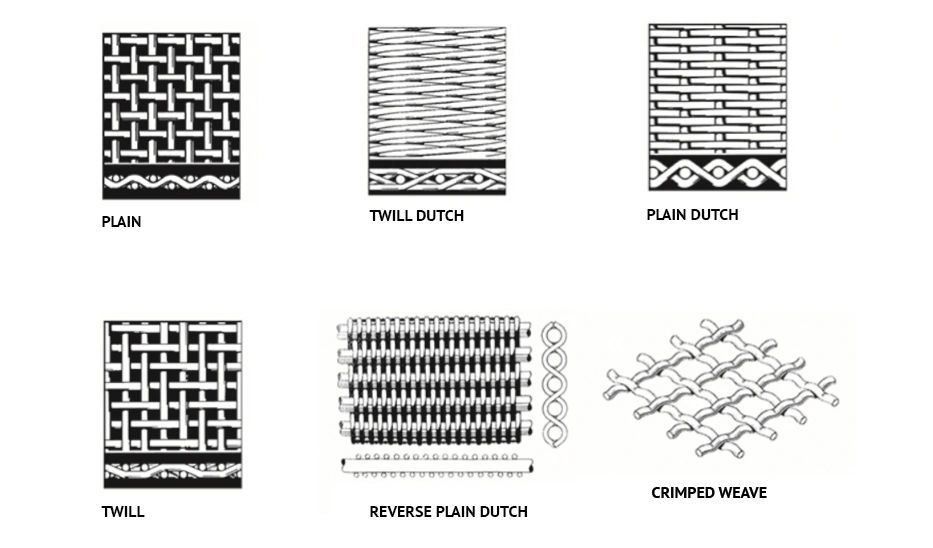

Depending on the type of opening and type of fabric, the stainless steel mesh can be divided into:

1. Square mesh: plain weave, twill weave.
2. Dutch mesh: plain dutch weave, twill dutch, dutch double warp, reverse plain dutch weave, reverse twill dutch weave.

Square mesh size: in general, the wire diameter of warp and weft is the same, the number of meshes of warp and weft is the same (rectangular meshes are not the same for warp and weft stitches). The weave can be divided into plain weave and twill weave.We provide Stainless Steel Wire Mesh from first class stainless steel wire materials in SUS302, 304, 316, 304L, 316L, 310, 321 and 430.

1. Flat mesh surface, tightly woven and uniform color

2. Even mesh opening, high and stable filtration accuracy

3. Precise control of the net weight per unit area in grams

4. Good formability of the mesh surface

5. Any length can be provided by continuous loading

6. With the most modern weaving machines in the industry

DLTT stainless steel wire mesh products, including the special high-performance square mesh, Dutch weave and normal stainless steel wire mesh are used in industries such as automotive, environmental protection, high-strength shielding and protection, oil drilling, etc. The number of square stitches ranges from 1 stitch to 635 stitches, Dutch stitches can reach 3500 stitches and the diameter is 0.015 to 8 mm, the width can reach 6 m and all can be made according to the national standard ISO, ASTM. DIN and other standards.

High-precision, fine-meshed DLTT products are manufactured by imported looms from Germany and Japan, and new intelligent NC looms are developed independently of one another. The meshes are characterized by good mesh flatness, high filtration accuracy and stable performance. Precision pressure filters, fuel filters, and vacuum filters manufactured by deep processing are widely used in industries such as aerospace, petroleum, chemical, fiber, rubber, metallurgy, medicine, food, etc.

If you're interested in stainless steel mesh, take a look at our synthetic meshes
